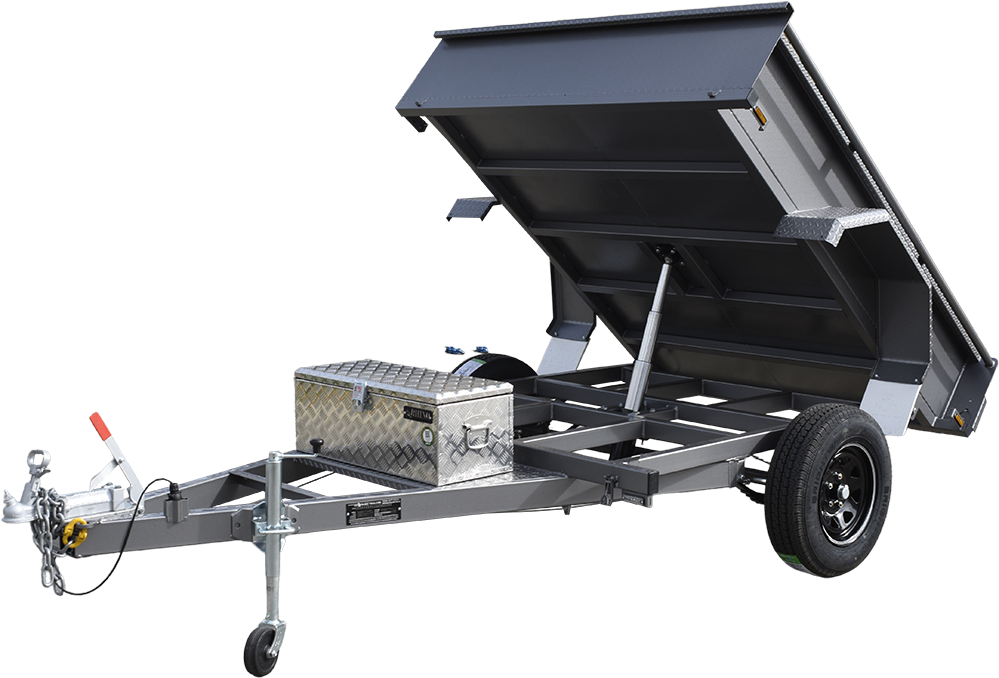

A well‑matched 12V hydraulic power unit (HPU) is essential for safe, efficient tipping. Flow rate (LPM), pressure (PSI), motor power (kW), pump displacement (cc), and oil capacity (L) must align with cylinder size, stroke, and duty cycle. This guide outlines common 12V HPUs and how to match them to 3–6 stage telescopic cylinders.
Key HPU specifications explained
-
Voltage: DC 12V is standard for trailer applications using vehicle batteries.
-
Motor power: Typical options include 1.1–1.2 kW and 2.2 kW class motors; higher kW improves lift speed under load and handles repeated cycles more comfortably.
-
Pump displacement and flow: A 1.6 cc pump yielding ~3.84 LPM suits compact lifting needs; 2.5 cc with ~6.25 LPM offers faster extension for larger cylinders.
-
Working pressure: Around 2300 psi is common for single‑acting tipper circuits; ensure cylinder capacity and hinge geometry are compatible with this pressure.
-
Oil tank capacity: Reservoir volume should cover cylinder fill volume plus return oil and allowance for aeration and heat. Tank sizes like 5 L (round), 8 L, 12 L, and 16 L square metal reservoirs align with increasing cylinder stroke and duty cycle.
-
Control and action: Single‑acting (power‑up, gravity‑down) is standard for tippers. Wired remotes are robust and maintenance‑light; wireless remotes add convenience on larger rigs.
Typical HPU configurations and use cases
-
5L, ~1.1 kW, 1.6 cc, ~3.84 LPM: Compact single‑acting power pack for small tippers, short strokes, and light loads where footprint and weight matter.
-
8L, ~2.2 kW, 2.5 cc, ~6.25 LPM: Balanced performance for mid‑size cylinders (e.g., 4–5 stage with ~840–1040 mm stroke), offering good speed and adequate oil volume.
-
12L, ~2.2 kW, 2.5 cc, ~6.25 LPM: Extra oil capacity suits longer strokes (e.g., 5 stage 1250–1500 mm) with repeated cycles and better thermal stability.
-
16L, ~2.2 kW, 2.5 cc, ~6.25 LPM: For the longest strokes (e.g., 6 stage 1780 mm) where oil volume and duty cycle are demanding.
Matching cylinder and HPU
-
Calculate cylinder oil volume: Sum the chamber volumes for all stages to determine fill requirements; ensure the reservoir exceeds this volume with headroom for aeration and thermal expansion.
-
Balance speed and control: Higher LPM increases extension speed but can impact control on lightly loaded trays; consider valve orifice and load characteristics.
-
Confirm pressure margin: Ensure relief settings and system pressure support the required lifting force given the tray geometry and load distribution.
-
Electrical considerations: Cable gauge, fusing/isolator, and solid earthing are critical for high current draw at 12V. Use short, appropriately sized cables and clean grounds.
Installation checklist
-
Mount the HPU horizontally on a rigid surface with the breather/fill accessible.
-
Use quality hydraulic oil (ISO VG 32–46 per climate) and rated hoses/fittings; route with slack for full extension and protect from abrasion.
-
Bleed lines, verify relief setting, and test the pendant under no load before service.
-
For wired remotes, secure looms away from heat and moving parts; for wireless, retain manual override where possible.
Maintenance and reliability
-
Intermittent duty: Allow cool‑down to preserve oil and seal life, especially on high‑cycle tasks.
-
Inspect oil level/condition, hoses, and electrical connections routinely; replace oil/filters per schedule.
-
Keep breathers and grease nipples clean; re‑torque mounts after the first hours of operation.
Putting it together
-
Small tipping trailers: A 3 Stage, ~630 mm stroke cylinder with a 5L, ~1.1 kW HPU offers a compact, budget‑friendly solution with dependable power‑up/gravity‑down control.
-
Mid‑size setups: A 4 Stage, ~840 mm stroke with an 8L, ~2.2 kW, 2.5 cc HPU provides a strong, responsive system for trade and farm trailers.
-
Heavy‑duty lifts: 5 Stage 1040–1500 mm or 6 Stage 1480–1780 mm cylinders pair well with 12–16 L reservoirs and ~2.2 kW motors to maintain speed, oil capacity, and thermal stability across repeated lifts.
