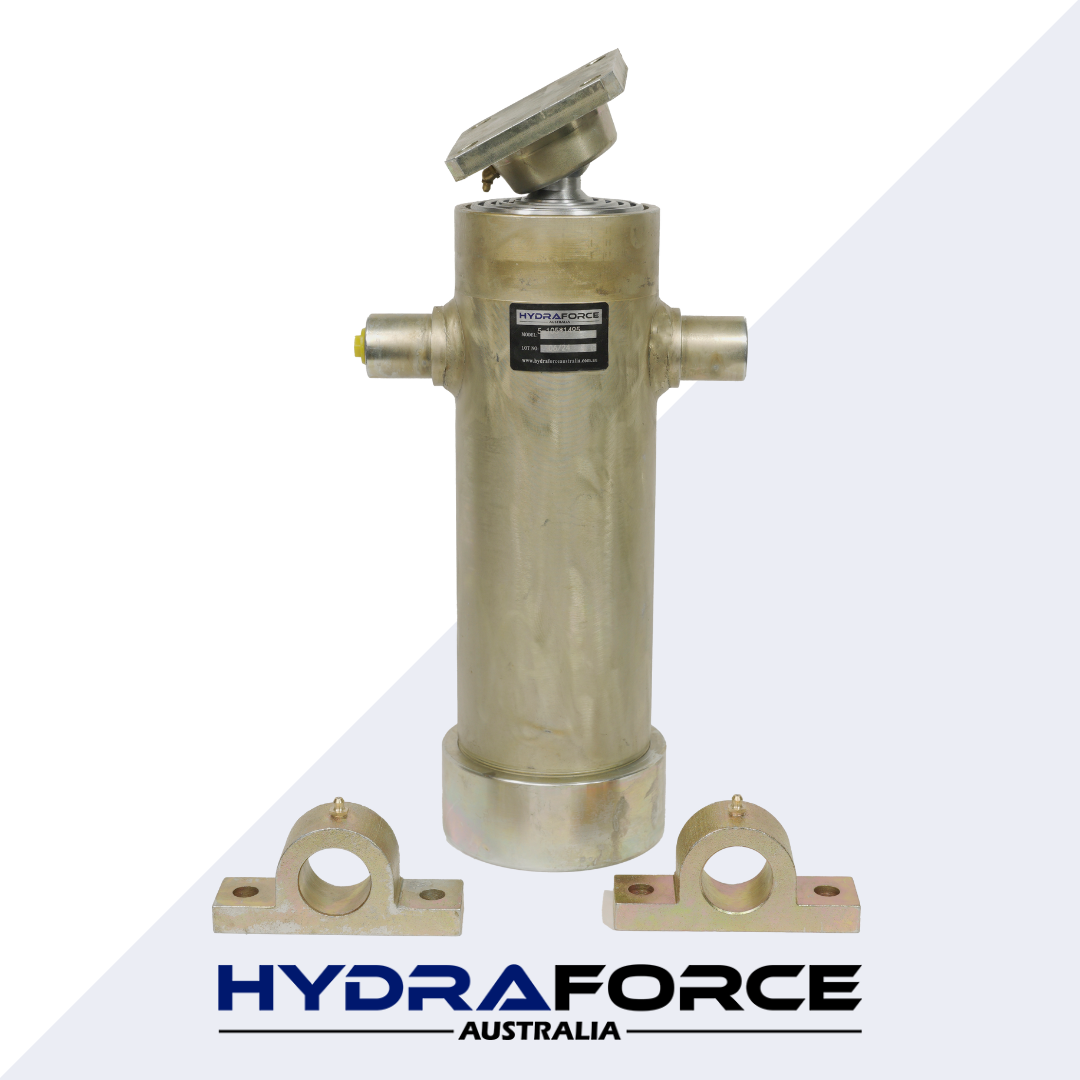

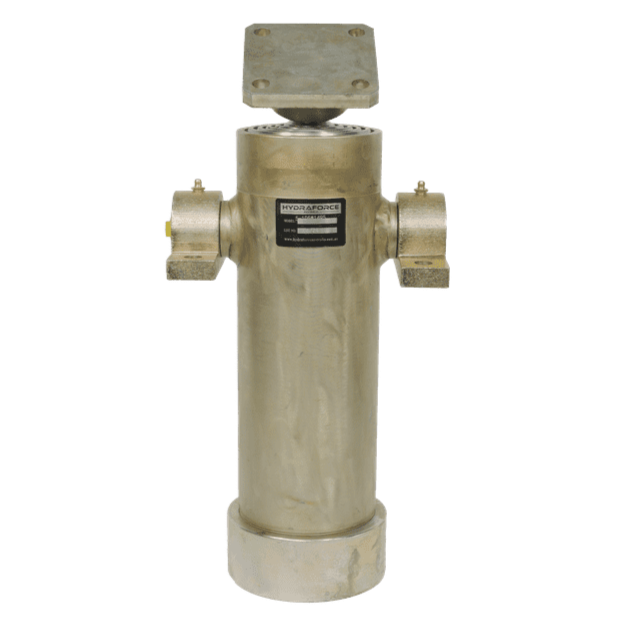

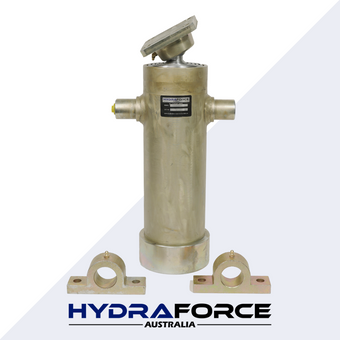

5 Stage Hydraulic Cylinder 1500mm Stroke

Retracted

• Overall length: 465 mm retracted for the cylinder assembly; front section ahead of cap called out as 150 mm retracted in side view.
• Cylinder body diameters: Ø145 mm max body with a Ø124 mm section shown in the top view.
• Rod/tube through mounts: Ø40 mm nominal through the clamp brackets; connecting plate sits at rod end when retracted.
• Mounting brackets (2 pcs): Clamp style for Ø40 mm nominal; base width 140 mm; hole spacing 108 mm; typical hole Ø15 mm; bracket height 65 mm; base thickness 17 mm; centre height to rod 32 mm; end-view base width 40 mm.

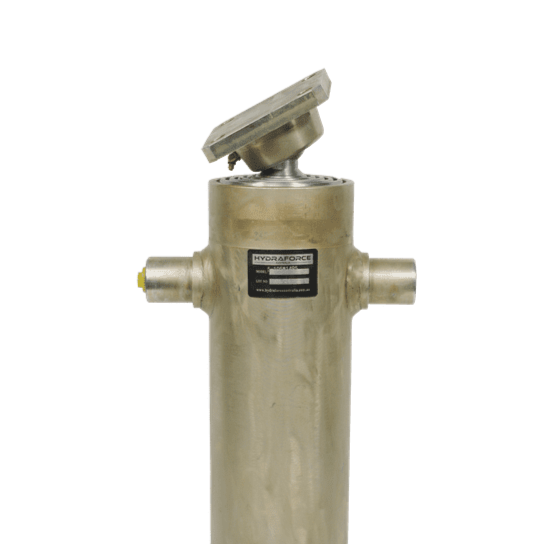

• Front connecting plate: 110 mm x 110 mm; bolt hole spacing 80 mm; Ø14 mm typical holes.
• Ports & fittings: Hydraulic connection point G3/8" BSPP; grease nipple on cylinder body.

Extended

• Overall length: 1960 mm extended; cylinder section callout 1645 mm extended in side view.
• Stroke: 1495 mm total travel from fully retracted to fully extended.
• Rod/tube exposed: Ø40 mm nominal multi-stage extension with connecting plate and grease nipple at the rod-end assembly.
