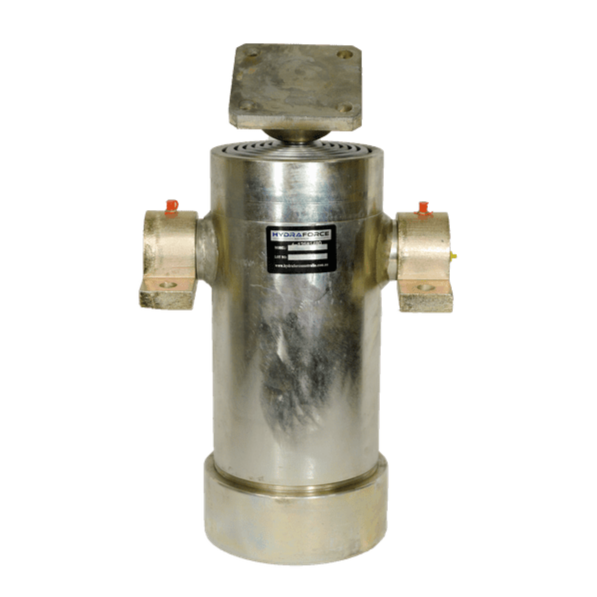

6 Stage Hydraulic Cylinder 1480mm Stroke / 8000KG Rated

6 Stage Hydraulic Cylinder 1480mm Stroke / 8000KG Rated

$1,070.00
$1,070.00
Shipping calculated at checkout.

Explore tool specifications

Description

Heavy-duty 6-stage telescopic cylinder engineered for tipping trailers and industrial lifts requiring long reach with a compact closed height. With a 1480mm stroke and 8000kg rating, it provides smooth multi-stage extension, stable load control, and reliable service when installed with the supplied Ø45mm clamp-style

Product Specifications

Retracted

  • Overall length: 417 mm retracted for the cylinder assembly; front section ahead of the cap noted as 155 mm retracted in side view.
  • Cylinder body diameters: Ø170 mm max body with a Ø152 mm section as shown in the top view.
  • Rod/tube through mounts: Ø45 mm nominal through the clamp brackets; connecting plate sits at the rod end when retracted.

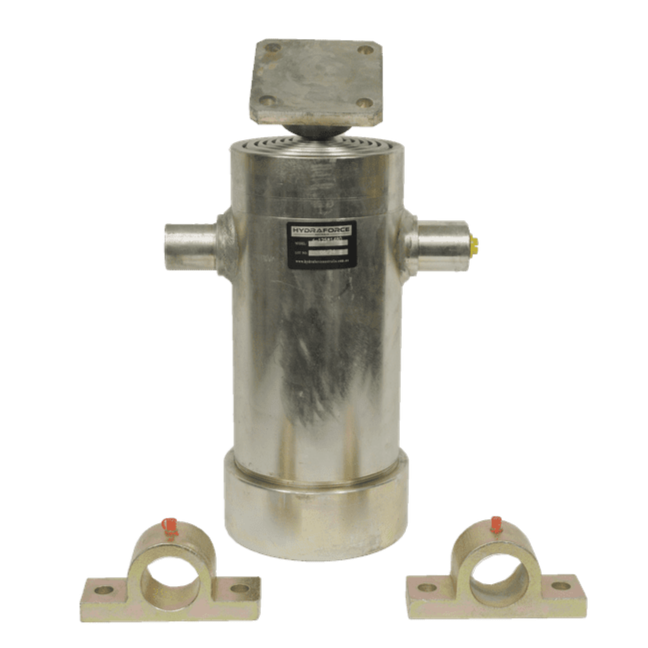

  • Mounting brackets (2 pcs): Clamp style for Ø45 mm nominal; base width 140 mm; hole spacing 108 mm; typical hole Ø15 mm; bracket height 65 mm; base thickness 17 mm; centre height to rod 32 mm; end-view base width 45 mm.

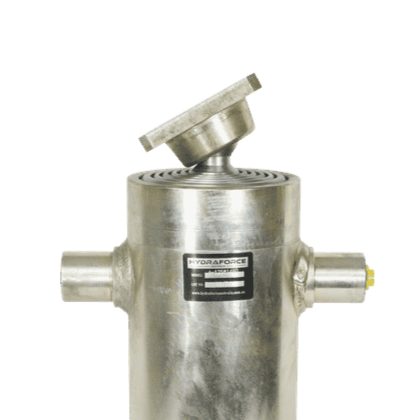

  • Front connecting plate: 110 mm x 110 mm; bolt hole spacing 80 mm; Ø14 mm typical holes.
  • Ports & fittings: Hydraulic connection point G3/8" BSPP; grease nipple on cylinder body.

Extended

  • Overall length: 1897 mm extended; cylinder section callout 1635 mm extended in side view.
  • Stroke: 1480 mm total travel from fully retracted to fully extended.
  • Rod/tube exposed: Ø45 mm nominal multi-stage extension with connecting plate and grease nipple at the rod-end assembly.
