6 Stage Hydraulic Cylinder 1780mm Stroke

6 Stage Hydraulic Cylinder 1780mm Stroke

$1,150.00
$1,150.00
Shipping calculated at checkout.

Explore tool specifications

Description

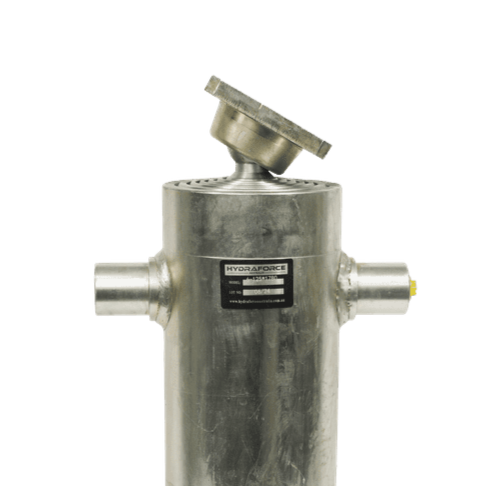

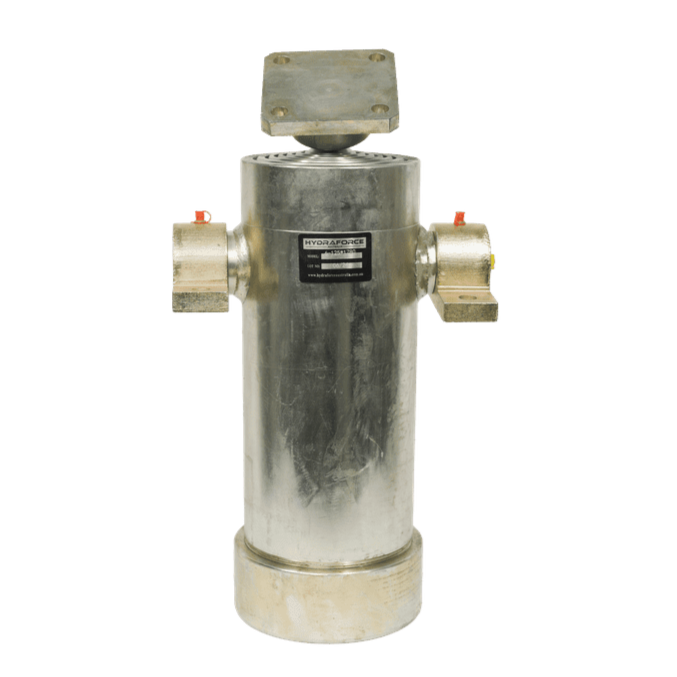

Heavy-duty 6-stage telescopic cylinder designed for large tipping trailers and industrial lifts requiring maximum reach and compact retracted length. With a 1780mm total stroke and a robust Ø170mm outer body, it delivers smooth multi-stage extension, stable load control, and reliable service life when mounted with the included Ø45mm clamp-style brackets.

Product Specifications

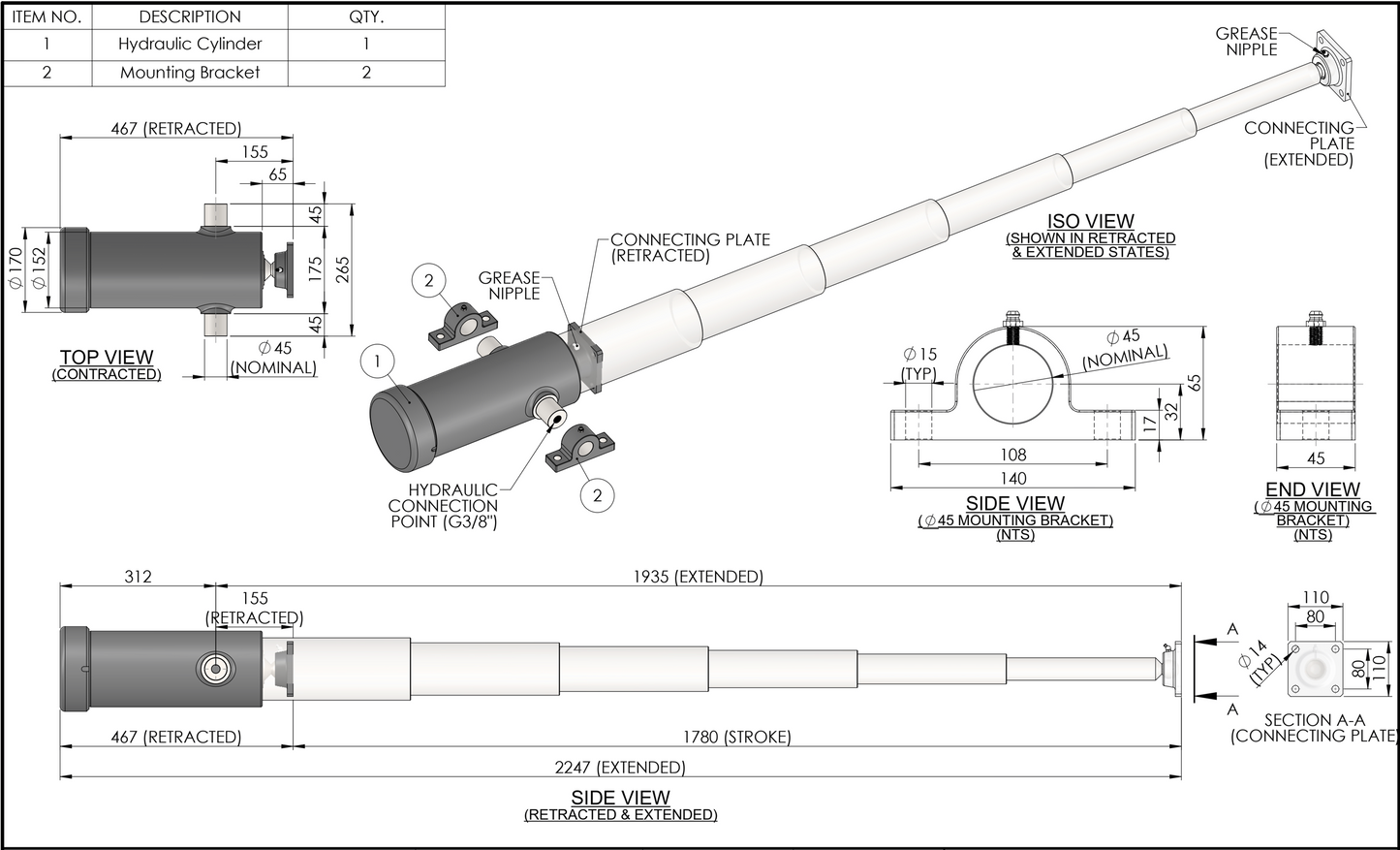

Retracted

  • Overall length: 467 mm retracted for the cylinder assembly; front section ahead of the cap noted as 155 mm retracted in side view.
  • Cylinder body diameters: Ø170 mm max body with a Ø152 mm section as shown in the top view.
  • Rod/tube through mounts: Ø45 mm nominal through the clamp brackets; connecting plate sits at the rod end when retracted.
  • Mounting brackets (2 pcs): Clamp style for Ø45 mm nominal; base width 140 mm; hole spacing 108 mm; typical hole Ø15 mm; bracket height 65 mm; base thickness 17 mm; centre height to rod 32 mm; end-view base width 45 mm.
  • Front connecting plate: 110 mm x 110 mm; bolt hole spacing 80 mm; Ø14 mm typical holes.
  • Ports & fittings: Hydraulic connection point G3/8" BSPP; grease nipple on cylinder body.

Extended

  • Overall length: 2247 mm extended; cylinder section callout 1935 mm extended in side view.
  • Stroke: 1780 mm total travel from fully retracted to fully extended.
  • Rod/tube exposed: Ø45 mm nominal multi-stage extension with connecting plate and grease nipple at the rod-end assembly.
