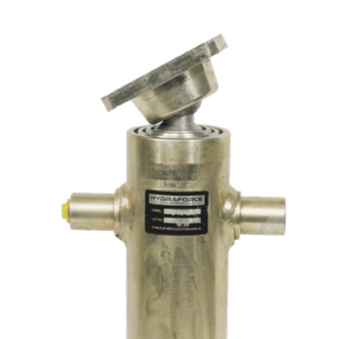

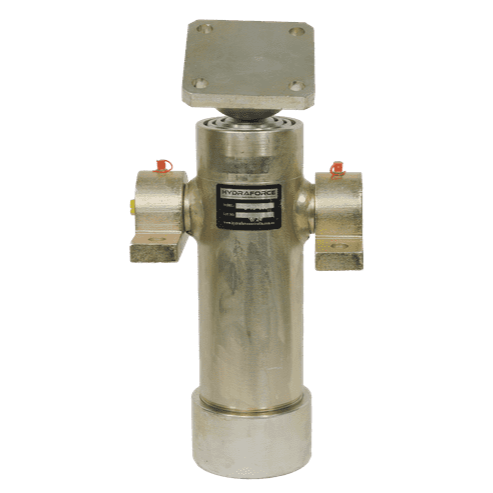

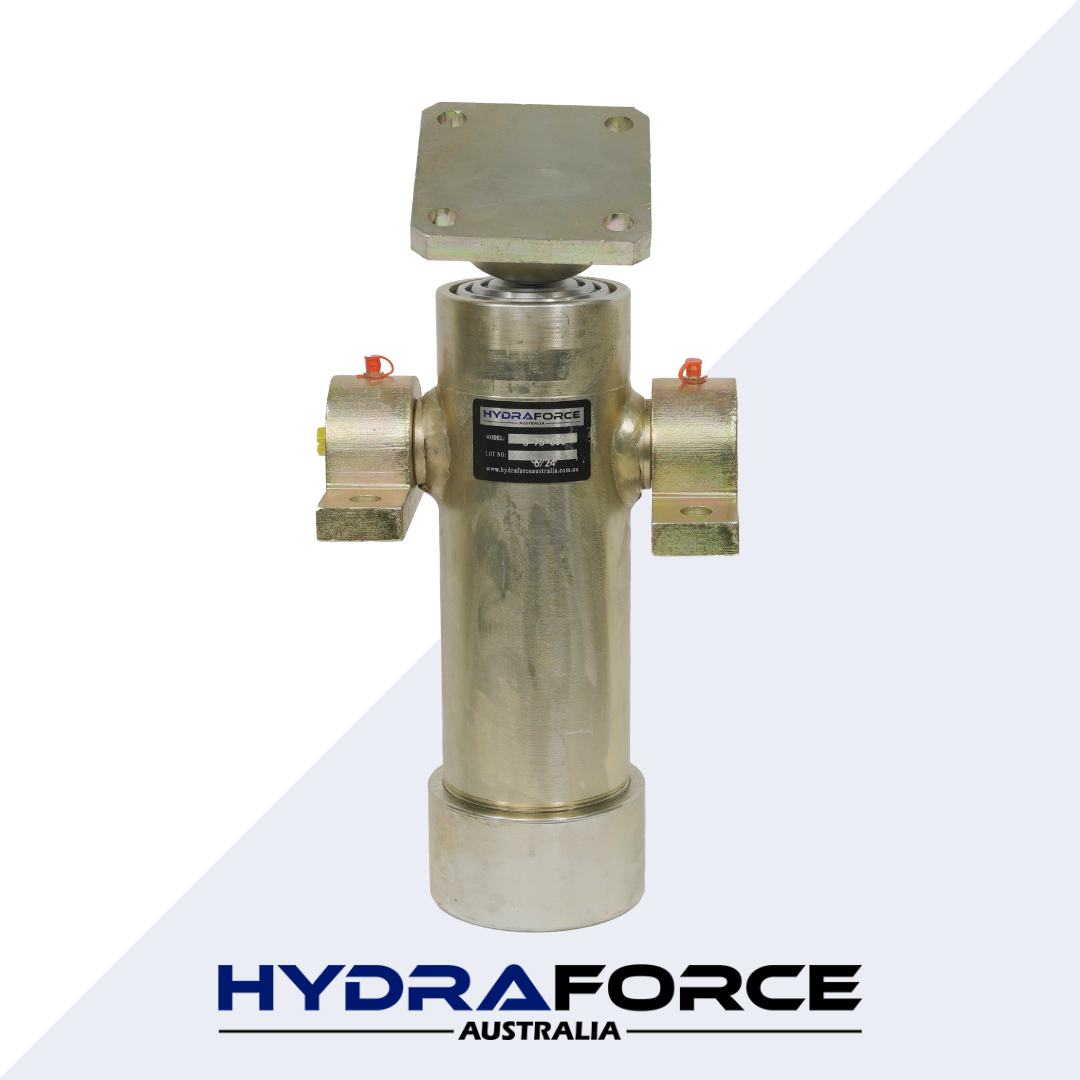

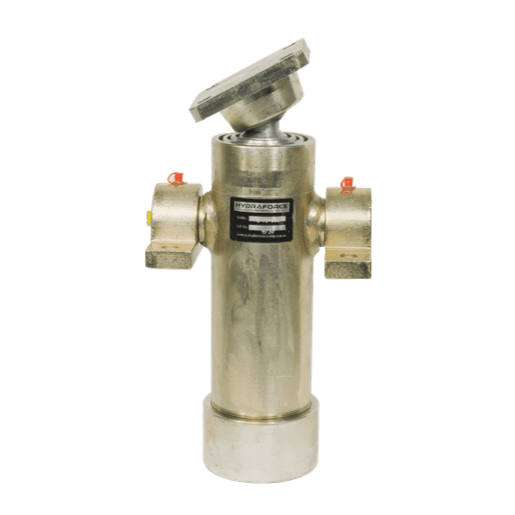

3 Stage Hydraulic Cylinder 630mm Stroke / 3000KG Rated

3 Stage Hydraulic Cylinder 630mm Stroke / 3000KG Rated

$500.00
$500.00
Shipping calculated at checkout.

Explore tool specifications

Description

Compact, heavy‑duty 3‑stage telescopic cylinder designed for small tipping trailers, ute bodies, and compact industrial lifts that need reliable power with a very short closed height. With a 630mm stroke and 3000kg rating, it delivers smooth, stable multi‑stage extension and durable performance when installed with Ø35mm clamp‑style

Product Specifications

Retracted

  • Overall length: 372 mm retracted for cylinder assembly; 140 mm retracted section ahead of the cap in side view.
  • Cylinder body diameters: Ø110 mm max body, with Ø95 mm section shown in top view.
  • Rod/tube: Ø35 mm nominal through mounting brackets; connecting plate seated at rod end when retracted.
  • Mounting brackets (2 pcs): Clamp style for Ø35 mm nominal; base width 140 mm; hole spacing 108 mm; typical hole Ø15 mm; bracket height 65 mm; base thickness 17 mm; centre height to rod 32 mm; end view base width 40 mm.
  • Front connecting plate: 110 mm x 110 mm; bolt hole spacing 80 mm; Ø14 mm typical holes.
  • Ports & fittings: Hydraulic connection point G3/8" BSPP; grease nipples on cylinder body.

Extended

  • Overall length: 1002 mm extended; cylinder section callout 770 mm extended.
  • Stroke: 630 mm travel from fully retracted to fully extended.
  • Rod/tube exposed: Ø35 mm nominal rod extended with connecting plate at rod end; grease nipple noted at plate area.
