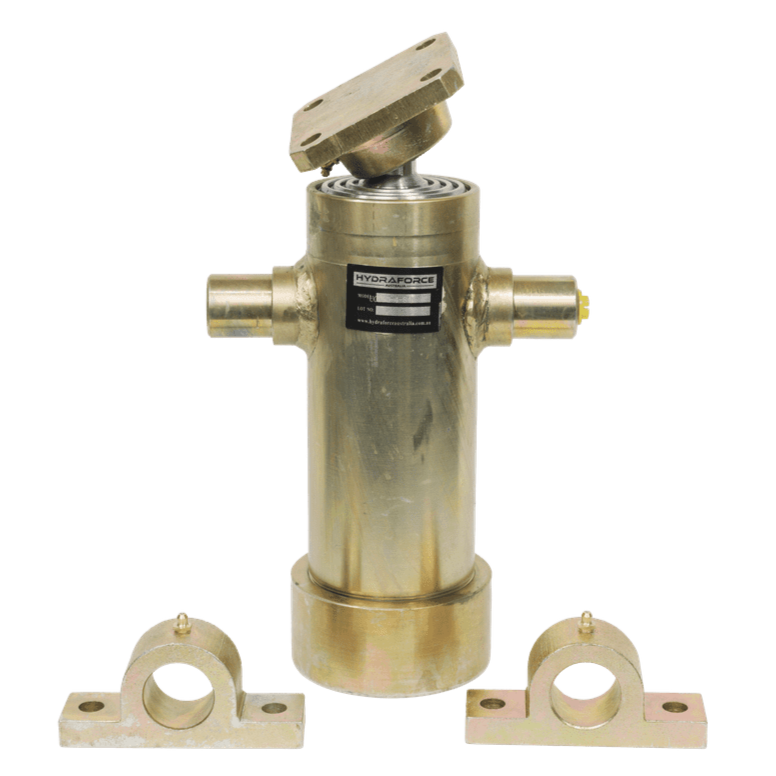

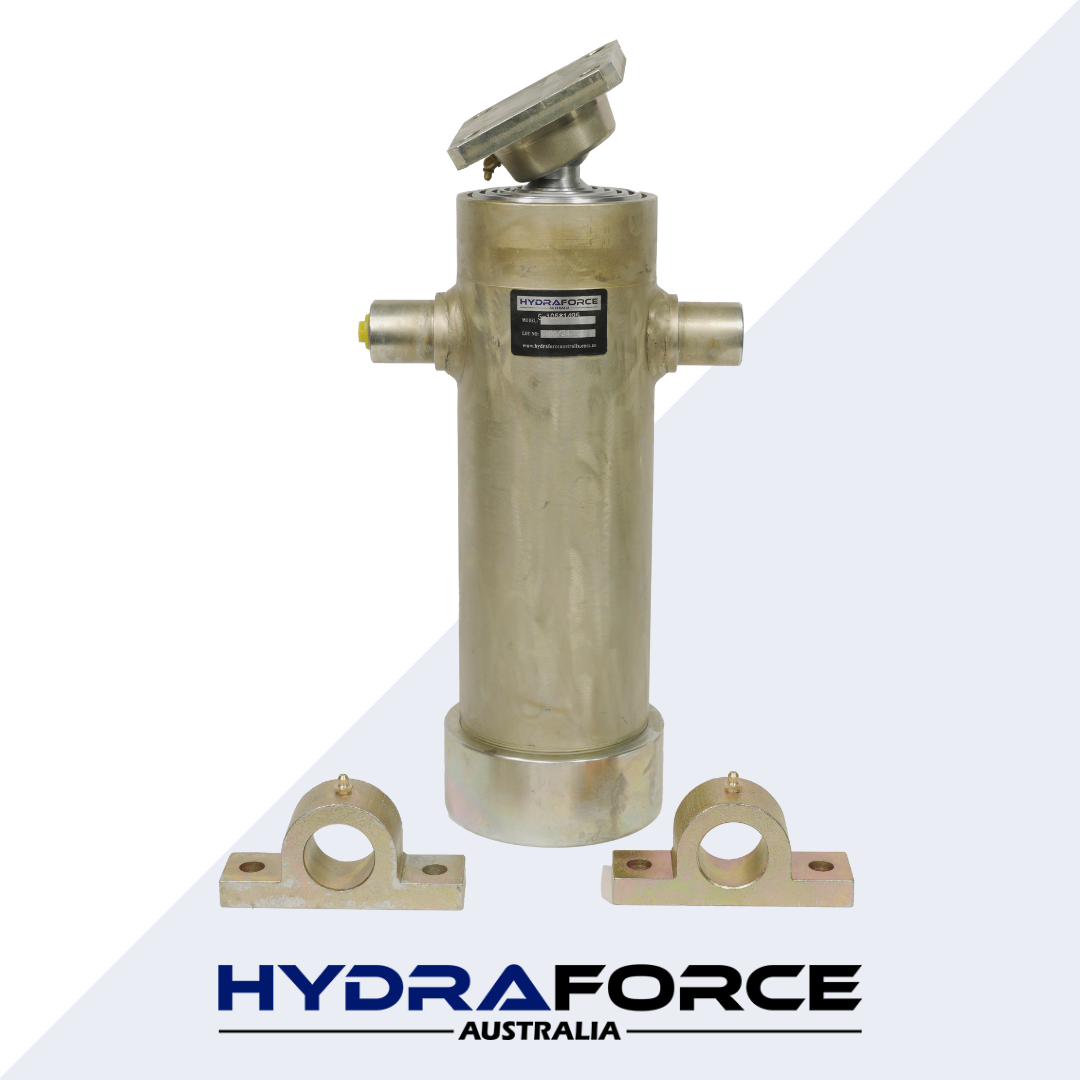

4 Stage Hydraulic Cylinder 840mm Stroke / 4600KG Rated

Retracted

• Overall length: 373 mm retracted for the cylinder assembly; front section ahead of the cap noted as 140 mm retracted in side view.
• Cylinder body diameters: Ø130 mm max body with a Ø112 mm section as shown in the top view.
• Rod/tube through mounts: Ø40 mm nominal through the clamp brackets; connecting plate sits at the rod end when retracted.

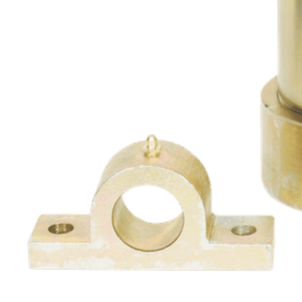

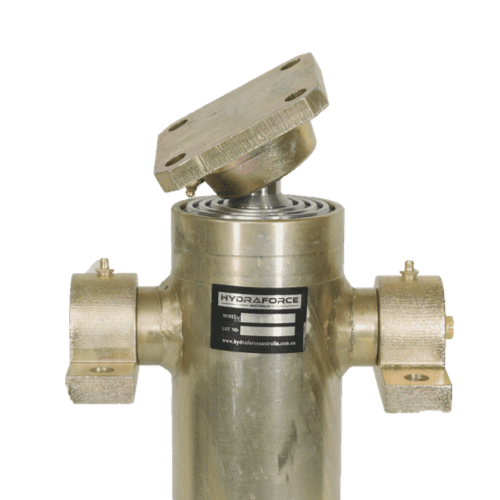

• Mounting brackets (2 pcs): Clamp style for Ø40 mm nominal; base width 140 mm; hole spacing 108 mm; typical hole Ø15 mm; bracket height 65 mm; base thickness 17 mm; centre height to rod 32 mm; end-view base width 40 mm.
• Front connecting plate: 110 mm x 110 mm; bolt hole spacing 80 mm; Ø14 mm typical holes.
• Ports & fittings: Hydraulic connection point G3/8" BSPP; grease nipples on body and rod-end plate.

Extended

• Overall length: 1213 mm extended; cylinder section callout 980 mm extended in side view.
• Stroke: 840 mm total travel from fully retracted to fully extended.
• Rod/tube exposed: Ø40 mm nominal staged extension with connecting plate and grease nipple at the rod-end assembly.
